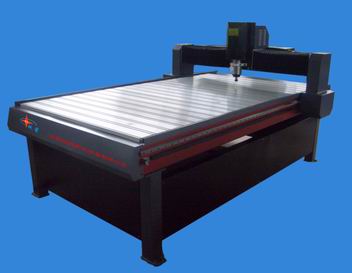

carving machine

Technical specification of TMC1325

High speed process: can process curves and straight lines simultaneously at the speed of 20m/mm

Massive Memory capacity: standard allocation of 128M to support transmitting data by USB flash Disk directly, which can save 30 processing files simultaneously for your choice.

Multi-compatibility: be compatible with popular CAD/CAM software: Type3/Artcam/Casmate/Proe/UG/Artgrave etc.

Convenient Operation: restoring function enable the machine stop running automatically when power off, and then automatically resume to work when power on, and also can store the break point from which for later operation to start.

    TMC1325 has large cutting moment, rapid speed and great power, so it is suitable for carving wood, furniture processing, instrument making. Decorative doors and giant engraving of carpentry.

Model	TMC1325-A	TMC1313-A	TMC1613-A	TMC1625-A
Working Size	1300*2500*160mm	1300*1300*160mm	1600*1300*160mm	1300*2500*160mm
Spindle motor	3000W	1500W	2200W	3000W
Motion speed	6000-12000mm/min
Spindle Rotation	6000-24000 rpm/min
Cutting Tool	Ф4、Ф6、Ф12.7mm
Dictate Format	HPGL . G-code
Resolution	0.01mm
Voltage	AC220V/50Hz or 380V/50Hz

Dust collecting system(optional)

Vacuum system(optional).

Panasonic servo motor (optional).

Automatic oil lubricating system (optional)

More power spindle motor can be mounted according to your requirement

Can produce any size for customers' special requirement

 Note: any changes of technical parameters without notice
