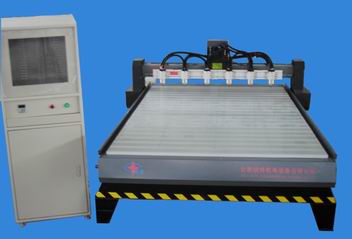

carving machine

Features:

Pipe steel structure bed, strong deformation, high stability.

Precision rack drive, quick speed, high machining efficiency, smooth operation.

Standard rectangle linear guide rail, Y to double row four row block, good bearing, stable operation, high precision, long life.

Famous constant power water-cooled frequency conversion motor and high performance frequency converter; performance is good, torque, high efficiency.

Software compatibility is good. Combined Type3 / Artcam/CAXA/UG/Pro - E/Mastercam/wen tai, etc.

Applicable Fields：

Widely used in big area wood engraving , wood furniture engraving, solid wood engraving, high density board of door and window engraving etc. Widely used in Antique furniture with relief carving, wood carving, furniture processing, instrument making, 3D light box making, Aluminum composite panel, funding mould decorative doors and windows processing etc.



Technical Parameters

MOLD	TMC-1613A	TMC-1313A	TMC-1325A
Working Area	1600x1300x160mm	1300x1300x160mm	1300x2500x160mm
Table Size	1770x1680mm	1470x1680mm	1470x2890mm
Motion Speed	6-15m/min	6-15m/min	6-15m/min
Operating System	DSP or NC Studio	DSP or NC Studio	DSP or NC Studio
Spindle Motor	800W（6 PCS)	800W（6 PCS)	3000W water cooling spindle
Spindle Rotation	6000-24000 rpm/min	6000-24000 rpm/min	6000-24000 rpm/min
Working Voltage	AC220V/50HZ	AC220V/50HZ	AC220V/50HZ
Engraving Tools	￠3.175/4/6mm	￠3.175/4/6mm	￠3.175/4/6/12.7mm
Dictate Format	G-code/HPGL	G-code/HPGL	G-code/HPGL
