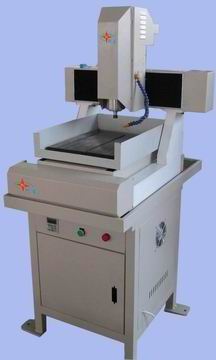

Chinese Rite mini jade or metal cnc router-TMC3025

Chinese Rite mini jade or metal cnc router-TMC3025



1.Features:

a.Integral casting bed, solid deformation, durable.

b.Adopt imported high precision ball screw drive, high precision, fast speed.

c.The assembly water storage device, is used to cool the tool.

d.Famous constant power water-e.cooled frequency conversion motor and high performance frequency converter; performance is good, torque, high efficiency.

f.Table movement to ensure the machining accuracy.

g.Software compatibility is good. Combined Type3 / Artcam/CAXA/UG/Pro - E/Mastercam/wen tai, etc.



2.Technical Parameters:

Mold	TMC-3636	TMC-4040	TMC-3025
Feeding hight	130mm	130mm	130mm
Table Size	360x360mm	400x400mm	300x250mm
Motion Speed	5-10m/min	5-10m/min	5-10m/min
Operating System	weihong DSP or NC Studio	weihong DSP or NC Studio	weihong DSP or NC Studio
Spindle Motor	800W	800W	800W
Spindle Rotation	6000-24000 rpm/min	6000-24000 rpm/min	6000-24000 rpm/min
Working Voltage	AC220V/50HZ	AC220V/50HZ	AC220V/50HZ
Engraving Tools	3.175/4/6mm	3.175/4/6/12.7mm	3.175/4/6/12.7mm
Dictate Format	G-code/HPGL	G-code/HPGL	G-code/HPGL



3.optional:
a.dust collecting system
b.oil lubrication system
c.vacuum system
d.can produce any size and color for customers'special requirements.



4.Guarantee and After-sale service:
a. year guarantee
b.24hour’s technical support by e-mail or calling







5.If you have any needs, please contact us.
