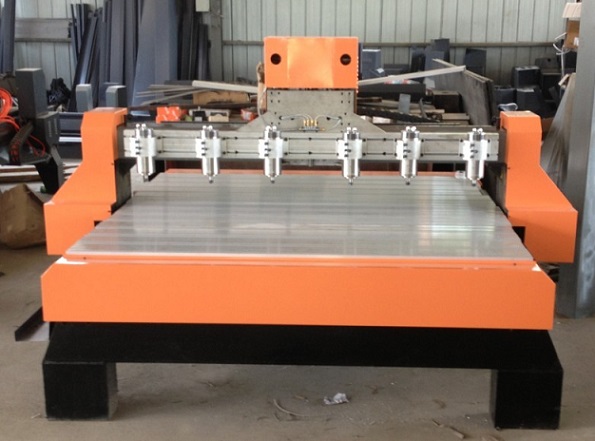

machine for cutting wood boards CNC ROUTER

machine for cutting wood boards CNC ROUTER

1.Features:

a.Pipe steel structure bed, strong deformation, high stability.

b.Precision rack drive, quick speed, high machining efficiency, smooth operation.

c.Standard rectangle linear guide rail, Y to double row four row block, good bearing, stable operation, high precision, long life.

d.Famous constant power watercooled frequency conversion motor and high performance frequency converte   r; performance is good, torque, high efficiency.

e.Software compatibility is good. Combined Type3 / Artcam/CAXA/UG/Pro - E/Mastercam/wen tai, etc.

2.Technical Parameters:

cnc router TMC-1613
1. working area:                                                             1600*1300*160mm
2.X, Z axis:                                                                     Hybrid servo motor
3.Y axis:                                                                         stepper motor
4.Resolution Working Accuracy:                                   0.01 mm
5.Running circumstance:                       Temperature: 0°C~45°C                                              Relative humidity: 30%~75%
6.Motion speed:		6-10m/min		6-15m/min
7.Machine Bed Structure:                                               Welded Steel / Cast Steel structure
8.Bed Type:                                                                     T Slot
9.Spindle Type:                                                               six 1.5KW spindles
10.Spindle speed:                                                           6000-24000 rpm/min
11.Working voltage:                                                         220V/50Hz
12.Inverter :                                                                     Delta from Taiwan or Fuling inverter
13.Drive Motors:                                                               Stepper
14.Max. Working Speed :                                               25,000 mm/minute (good quality cutting bits ensured)
15.Command :                                                                 G code, HPGL, U00, mmg, plt
16.Software:                                                                     Type3
17.Operating system :                                                     Weihong cotrolling system or DSP
18.Interface :                                                                     USB
19.Diameter of cutter:                                                       3.175/4/6
20: Weight:                                                                       800kg

3.optional:

a.  Stepper motor / Servo motor.

b.  dust collecting system

c.  vacuum system

d.  Spindle : water cooling spindle (3KW , 4.5KW) / Italy HSD air   cooling spindle.
e.  Dsp/NC Studio controlling system

f. can produce any size and color for customers' special requirements.

4.Guarantee and After-sale service:

a.One year warranty. During the one year, if spare part broken , we freely change a new one for you.

b.24hour’s technical support by e-mail or calling.

c.Use English manual for machine using and maintaining.

5.If you have any needs, please contact us.

Hefei Rite Machinery and Electrical Equipment Co., Ltd.
ADDR: MinYing technology zone, QiYun road, economic development district, HeFei city, China.
TEL: 86-0551-65737189
FAX: 86-0551-65305790
Mobile: 008615156054169

skype:elsacnc

Our factory:

Samples:

Parts:

Spindle:
