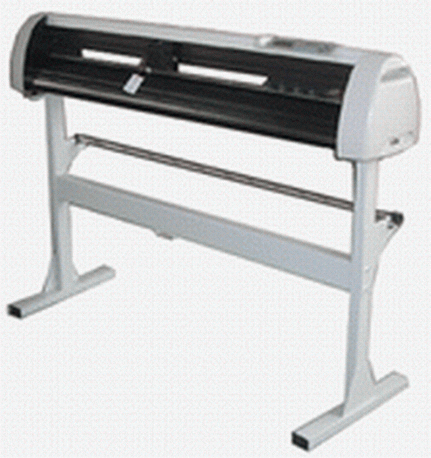

Cutting plotter (MC720)
Features:
The specialized industry modeling and mechanism design, the outward appearance more smooth and natural, the structure more scientific and strong.
The wholly aviation aluminum molding body, which make sure the more stable function under high speed working.
The USB connection, the data transmission is stabler, meanwhile, with the U Flash memory can used for output directly
The LED display with light backsie,also easily changed between English and Chinese, with more simply operation
Application area：
Cutting the instant sticker, label, cardboard, paper, film used for making paper models, puzzle, stereo cards, stickers; suitable for advertisement shop, school, office, family use,
Technical Parameters
|
MOLD |
MC720 |
MC870 |
MC1100 |
MC1350 | |
|
.Paper Feeding Width |
720mm |
870mm |
1100mm |
1350mm | |
|
Max.Cutting Width |
630mm |
780mm |
1000mm |
1260mm | |
|
Interface |
RS +USB | ||||
|
Language Format |
DMPL and HPGL | ||||
|
Speed |
800mm/s | ||||
|
Knife Pressure |
500g | ||||
|
Driving system |
Stepper | ||||
|
Power Supply |
AC90V-AC240V 50-60HZ | ||||
|
Mechanical Resolution |
0.0254mm/step | ||||
|
Weight |
20Kg |
23Kg |
27Kg |
31Kg | |
